Solved Problem 1 The Figure Shows A Snapshot Graph Of A Wave Chegg #x27;for the same wave as above; the graph below shows snapshot of the wave as function of distance 1 3 1 x (m) determine (no units please) the: a. amplitude. Our expert help has broken down your problem into an easy to learn solution you can count on. here’s the best way to solve it.

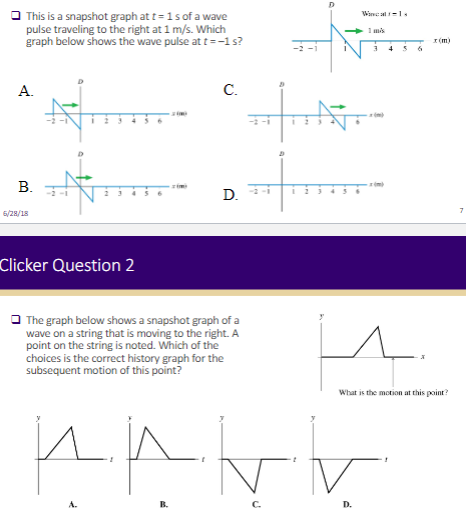

Solved This Is A Snapshot Graph At T 1s0f A Wave Pulse Chegg The graph below shows a history graph of the motion of one point on a string as a wave moves by to the right. which of the choices is the correct snapshot graph for the motion of the string?. There are a couple ways to determine if a wave is periodic. the first is to take a snapshot of the wave, and see if its waveform is repeated in space: figure 1.2.1a – snapshot of a periodic wave. it should be noted that the starting point of each waveform in the diagram above was chosen arbitrarily. For example, if a wave has a crest that reaches 4 cm above the equilibrium line, that signifies the amplitude. if we measure the horizontal distance from one crest to the next crest and find it to be 8 cm, that's the wavelength. The graph below shows a snapshot of a wave on a string which is traveling to the right. there is a bit of paint on the string at pointp. at the instant shown, the acceleration of paint pointphas which direction? (a) up (b)down (c) left (d) right (e) none of the above question: what is the frequency of this traveling wave? (a) 0.1hz (b) 0.2hz (c.

Solved What Is The Snapshot Graph Of This Wave At T 2 S Chegg For example, if a wave has a crest that reaches 4 cm above the equilibrium line, that signifies the amplitude. if we measure the horizontal distance from one crest to the next crest and find it to be 8 cm, that's the wavelength. The graph below shows a snapshot of a wave on a string which is traveling to the right. there is a bit of paint on the string at pointp. at the instant shown, the acceleration of paint pointphas which direction? (a) up (b)down (c) left (d) right (e) none of the above question: what is the frequency of this traveling wave? (a) 0.1hz (b) 0.2hz (c. Chapter 20. basic content and examples where μ is the string’s mass to length ratio, also called the linear density. a function of position at a single instant of time is called a snapshot graph. for a wave on a string, a snapshot graph is literally a picture of the wave at this instant. A snapshot graph shows the wave's displacement as a function of position at a single instant of time. a history graph shows the wave's displacement as a function of time at a single point in space. for a transverse wave on a string, the snapshot graph is a picture of the wave. Figure q16.4 shows a snapshot graph and a history graph for a wave pulse on a stretched string. they describe the same wave from two perspectives. a. in which direction is the wave traveling? explain. b. what is the speed of this wave? b) the velocity of the wave is 200 m s. step 1. write the given information. Q: to 1.) Ë = 4.50m, 37° e of s 5 3m 46°5 of e f = 4m, 20° e of n a: the component vector. given, d→=3 m, 46o s of ee→=4.50 m, 37o e of sf→=4 m, 20o e of n.

Solved Figure 1 ï Shows A Snapshot Graph And A History Chegg Chapter 20. basic content and examples where μ is the string’s mass to length ratio, also called the linear density. a function of position at a single instant of time is called a snapshot graph. for a wave on a string, a snapshot graph is literally a picture of the wave at this instant. A snapshot graph shows the wave's displacement as a function of position at a single instant of time. a history graph shows the wave's displacement as a function of time at a single point in space. for a transverse wave on a string, the snapshot graph is a picture of the wave. Figure q16.4 shows a snapshot graph and a history graph for a wave pulse on a stretched string. they describe the same wave from two perspectives. a. in which direction is the wave traveling? explain. b. what is the speed of this wave? b) the velocity of the wave is 200 m s. step 1. write the given information. Q: to 1.) Ë = 4.50m, 37° e of s 5 3m 46°5 of e f = 4m, 20° e of n a: the component vector. given, d→=3 m, 46o s of ee→=4.50 m, 37o e of sf→=4 m, 20o e of n.
