How To Dimension When Viewports With Different Scales In Paper Space

How To Dimension When Viewports With Different Scales In Paper Space Users reported that when creating a dimension in paper space in autocad, a different value shows compared to the actual model space measurement. the value shown does not honor the representation scale of the viewport. test with the dimlinear command versus the dim command. The first check, click your dimension, and then prompt command prop. then you can see the object of properties. so, check text override value. the second check, go to the dim style, in primary units, check scale factor. the scale factor multiplies your dim value when you create dimension. 11 24 2017 08:09 pm. hello,.

Viewports And Dimension Scales Coding With Visual Basic I add a dimension in paper space on a layout tab and change the linear scale setting in properties so it will show the correct dimension. sometimes we do a text override but most of the time i use the linear scale property to get the dimension to read right. Learn how to set dimensions, paper size, view port, and scale in autocad with this easy tutorial. When working with viewports at different scales, i'd recommend dimensioning in paper space. while dimensioning, you can activate the "auto" scale option (options toolbar at the top) to automatically adjust the dimensions linear scale factor to the viewport you are dimensioning. When setting the viewport scale in paper space, the drawing seems to be scaled at the wrong scale, either too big or too small in autocad. the units are set to a different value compared to the values set in dwgunits.

Viewports And Dimension Scales Coding With Visual Basic When working with viewports at different scales, i'd recommend dimensioning in paper space. while dimensioning, you can activate the "auto" scale option (options toolbar at the top) to automatically adjust the dimensions linear scale factor to the viewport you are dimensioning. When setting the viewport scale in paper space, the drawing seems to be scaled at the wrong scale, either too big or too small in autocad. the units are set to a different value compared to the values set in dwgunits. How do i set up text size, dimensions size and scale to properly view my drawing view port in paper space. will i need to make changes to scales if i change my paper size?. A couple suggestions, if you do dimension in paperspace (which i don't recommend) lock your viewports (either through the properties window or the command mview >lock). Another way to use dimensions in paper space (layout) is to change the scale factor in the primary units tab within the dim styles dialog. for 1 4" = 1' 0" set the scale factor to 48. Here is what i would like you to do: open a drawing. go to a layout. make sure you are in paperspace. make sure nothing is selected. look at the properties panel, under "misc">annotation scale. what does it show for your annotation scale. for me, in most cases, it shows either 1:1 or 1' 0"=1'0".

Label Plants In Paper Space How do i set up text size, dimensions size and scale to properly view my drawing view port in paper space. will i need to make changes to scales if i change my paper size?. A couple suggestions, if you do dimension in paperspace (which i don't recommend) lock your viewports (either through the properties window or the command mview >lock). Another way to use dimensions in paper space (layout) is to change the scale factor in the primary units tab within the dim styles dialog. for 1 4" = 1' 0" set the scale factor to 48. Here is what i would like you to do: open a drawing. go to a layout. make sure you are in paperspace. make sure nothing is selected. look at the properties panel, under "misc">annotation scale. what does it show for your annotation scale. for me, in most cases, it shows either 1:1 or 1' 0"=1'0".

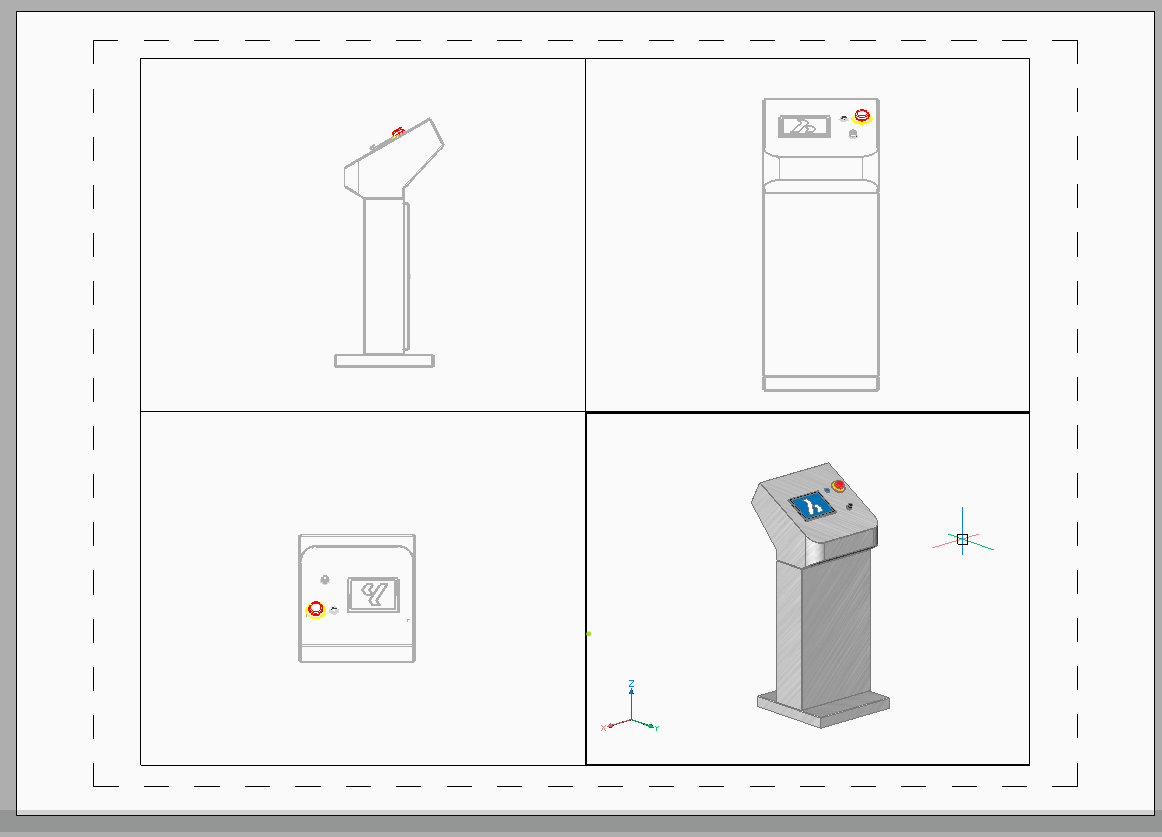

Viewports Paper Space In Bricscad Bricsys Blog Another way to use dimensions in paper space (layout) is to change the scale factor in the primary units tab within the dim styles dialog. for 1 4" = 1' 0" set the scale factor to 48. Here is what i would like you to do: open a drawing. go to a layout. make sure you are in paperspace. make sure nothing is selected. look at the properties panel, under "misc">annotation scale. what does it show for your annotation scale. for me, in most cases, it shows either 1:1 or 1' 0"=1'0".
