Properties Line Type Scale Autocad Tutorials Architecture Autocad Properties line type scale autocad tutorials #architecture #autocad the adam 263k subscribers 285. Linetype scale can be set for the drawing, but also individual objects can have override values for it, via the properties palette, a change command's properties option, or a chprop command.

Linetypes And Lineweights Autocad Tutorial And Videos Changing the ltscale will modify all linetype scales in the drawing, so how can one be selective and scale one or more linetypes? the solution is to select the linetype and then modify the scale in the properties palette. Use ltscale to change the scale factor of all linetypes for all geometry in a drawing. changing the linetype scale factor causes a ‘ regen ’ so you can see the result of your changes straight away. if you only draw and plot from model space, you can use ltscale to scale all your line types to suit your plot scale. Lastly, if all else fails and your linetype is not displaying correctly, you may need to override the individual objects linetype scale property. to do so, simply select the object (s), navigate to the properties palette, and adjust the linetype scale property as needed. To adjust the scale for all objects, use the ltscale command. type ltscale in the command line and press enter. you will be prompted to input a new scale factor. enter the desired value and press enter again. typically, a scale factor that reflects your drawing’s intended scale is best.

Linetypes And Lineweights Autocad Tutorial And Videos Lastly, if all else fails and your linetype is not displaying correctly, you may need to override the individual objects linetype scale property. to do so, simply select the object (s), navigate to the properties palette, and adjust the linetype scale property as needed. To adjust the scale for all objects, use the ltscale command. type ltscale in the command line and press enter. you will be prompted to input a new scale factor. enter the desired value and press enter again. typically, a scale factor that reflects your drawing’s intended scale is best. Learn how to set up the linetype scale in autocad drawings, both globally and for individual objects, so objects can be displayed clearly and concisely. Solution: the solution is to select the linetype and then modify the scale in the properties palette. in properties, when no objects are selected the linetype scale field under the general category will scale linetypes globally in the drawing. Starting with autocad 2008, linetype scaling in model space is controlled by the variable msltscale and in paper space with psltscale. the msltscale system variable controls whether or not linetypes displayed in the model tab are scaled based on the annotation scale. Controlling the linetype scale in autocad can be achieved on three levels: globally, for the whole drawing, for a specific space (such as model space or paper space), and for an individual object. here's how you can do it:.

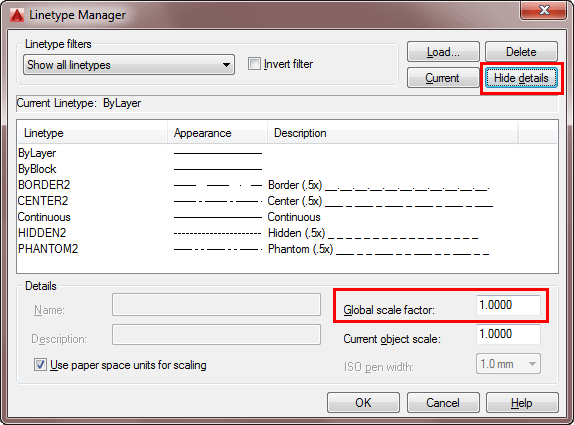

Line Type Scale Autocad Tips Learn how to set up the linetype scale in autocad drawings, both globally and for individual objects, so objects can be displayed clearly and concisely. Solution: the solution is to select the linetype and then modify the scale in the properties palette. in properties, when no objects are selected the linetype scale field under the general category will scale linetypes globally in the drawing. Starting with autocad 2008, linetype scaling in model space is controlled by the variable msltscale and in paper space with psltscale. the msltscale system variable controls whether or not linetypes displayed in the model tab are scaled based on the annotation scale. Controlling the linetype scale in autocad can be achieved on three levels: globally, for the whole drawing, for a specific space (such as model space or paper space), and for an individual object. here's how you can do it:.

Line Type Scale Autocad Tips Starting with autocad 2008, linetype scaling in model space is controlled by the variable msltscale and in paper space with psltscale. the msltscale system variable controls whether or not linetypes displayed in the model tab are scaled based on the annotation scale. Controlling the linetype scale in autocad can be achieved on three levels: globally, for the whole drawing, for a specific space (such as model space or paper space), and for an individual object. here's how you can do it:.
